Our Technology

How we utilize the spin of the earth to generate Vortex powered hydro turbines.

At a glance

The KCT is the world’s first patented vortex turbine, operated using the spin as distinct from the fall of water, in the waterway, reservior or on land.

The KCT harnesses the energy in a vortex, drawing from the Coriolis Force to produce approximately 27% more electricity when combined with a conventional turbine, as revealed during proof of concept testing at Kalorama.

The KCT has been reviewed and endorsed by Dr. Harry Schaap, Federal Advisor for Renewable Energy. In turn Austrade has endorsed The KCT and included it on its Clean Energy Export Directory.

85  %
Operating efficiency
60  cm
Minimum fall
80  L/s
Nominal flow rate

85%

Operating Efficiency

60cm

Minimum fall

80L/s

Nominal flow rate

WATERWAY EMBODIMENT OF KCT

TRANSPORTABLE EMBODIMENT OF KCT

Canadian Mildmay 2017 KCT Concept Drawing reproduced with the kind permission of the Pryce Family.

PIPELINE (PICO) EMBODIMENT OF KCT

The Pico KCT

Small-scale vortex hydropower

The Pico KCT is a micro hydro vortex turbine inside a small chamber, with a DC generator on top. It delivers electrical energy in DC at any voltage required.

The Pico unit does not affect the flow of the system due to the suction of the vortex. In addition, there is minimal impact to the water pressure. As with any KCT unit, power will be generated at any time when water is flowing through the vortex system; enabling the Pico to supply power to the battery of a multitude of micro devices, such as a smart water meter.

Features & Benefits

onandoff

On and off grid

You can provide power to the grid or operate KCT off-grid in combination with power storage, or both.
placement options

Multiple placement options

Multiple KCT installations can be installed either in parallel at one junction or in a series along the canal.
secure

Secure and unobtrusive

KCT blends into the natural background and is very unobtrusive. In addition, it is easy to secure and monitor.
standalongor

Standalone or hybrid sources

KCT is modular in design and works great alongside other sources such as solar installations or diesel generators.
offsiteonbank

Offsite, on bank, in waterway

An installation can be located practically anywhere: on a diverted canal, on a bankside or inside the waterway.
recycle

No footprint, fully recyclable

The entire KCT assembly is made of recyclable materials and its removal can leave no trace of existence at all.
above or in

Above-ground or In-ground

You can install KCT above ground, or in the ground, depending on the site and other project requirements.
12hr

On Site Assembly in 12h

For a prepared site it takes 12 hours to assemble for a KCT assembly, not including any optional concrete work.
low maintinance

Low Maintenance

KCT operates smoothly for a long product life with minimal maintenance. Distant monitoring & standard parts are available.
suppplementreal

Supplement existing hydro

KCT can be retro-fitted to existing installations of various types in order to economically increase a site’s output.
truck

Portable and mobile

KCT can be transported on the back of a truck and lifted into place easily. This enables access to hard-to-reach sites.
warranty

Long operating life

With a simple and rugged design, and very lengthy MTBF, KCT is supported by a 25 year warranty.

Patent Protection

Since 1998, all 18 key nations of relevance to the K.C.T. have in due course been secured and brought under the intellectual property umbrella with the Mark1 KCT vortex turbine.
The global KCT mini hydroelectricity market is protected, with Mark2 patents now also being sought in an additional 60 countries. If you are interested in a JV, please contact us.

Mark2 Patents Pending in Pakistan, the Middle East, Asia, Oceania, & South America.

The KCT Compared

500W

Domestic micro unit

80L/s

Nominal flow rate

<1 month

Construction time
500  W
Domestic micro unit
80  L/s
Nominal flow rate
< 1  month
Construction time

Marysville KCT Vs Conventional Hydropower

The KCT uses the flow not the fall of water, and can operate with a very low head, well under the 3 metre minimum required by conventional turbines to operate efficiently. Furthermore it does not interfere with the flow rate, which enables the system to be used sequentially in a waterway.

The KCT is especially designed for low head applications over traditional Kaplan and Francis type turbines, due to the increase in efficiency it provides; as can be seen on the graph.

At Marysville, the KCT hydro plant generated 550 watts using 110L/s of water flow with a fall of 0.6 metres. This equates to about 5 Watts per litre/second using flow only, not water pressure.
A turbine’s efficiency can be determined by the standard formulas, and the output identified in the graph was extrapolated from available data. However it should be noted a Kaplan or Francis turbines could not be installed and operated at the Marysville site with this low head.

Standard Formula: Gravity * Head * Flow Rate * Efficiency = Watts Output
KCT: 9.81 m/s2 * 0.6m * 110 l/s * EFF = 550 watts. Efficiency = 85%.
Kaplan: 9.81 m/s2 * 0.6 m * 110 l/s * EFF = 180 watts. Efficiency = 28%.
Francis: 9.81 m/s2* 0.6 m * 110 l/s * EFF = 300 watts. Efficiency = 46%

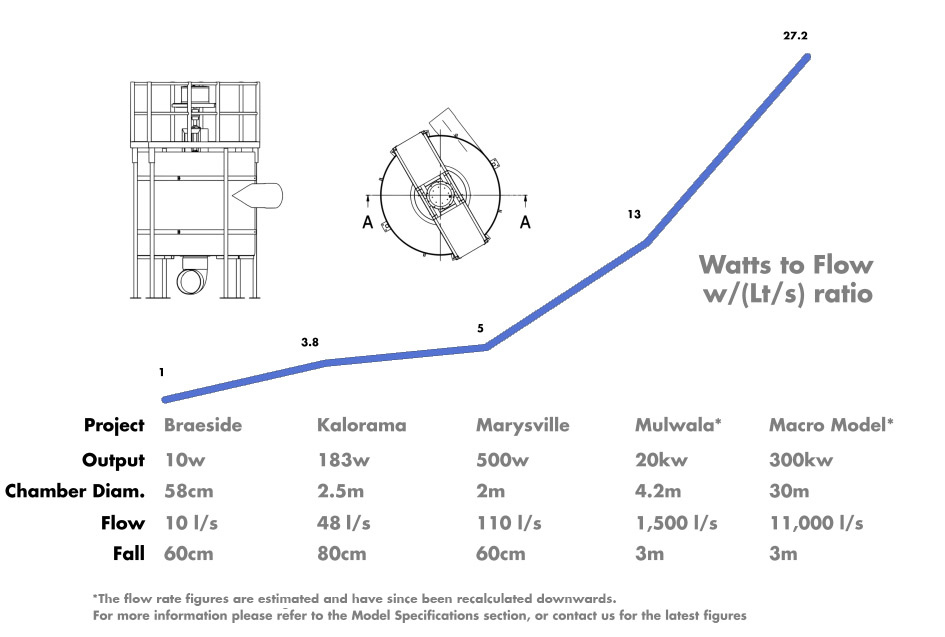

Exponential power increase

The following KCT graph supports the proposition that vortex power is an improved form of hydroelectric production over conventional head of pressure hydrology. The graph shows that watts per litres/second and vortex power appears to increase in an exponential curve, as vortex size increases. The power does not appear to increase lineally, as the standard formulas would dictate.

With the KCT, power increases exponentially because the volume/mass increases exponentially with vortex size due to πr2 x depth. Accordingly, a vortex chamber of 2m x 2m = 6.28m3/tons whereas a vortex chamber of 4m x 4m = 50.24m3/ton.

DEMONSTRATION UNIT

Marysville, Victoria

COMMERCIAL UNIT

Porogia, Greece
